Ceramic Fiber Insulation Blanket

Ceramic Fiber Insulation Blanket

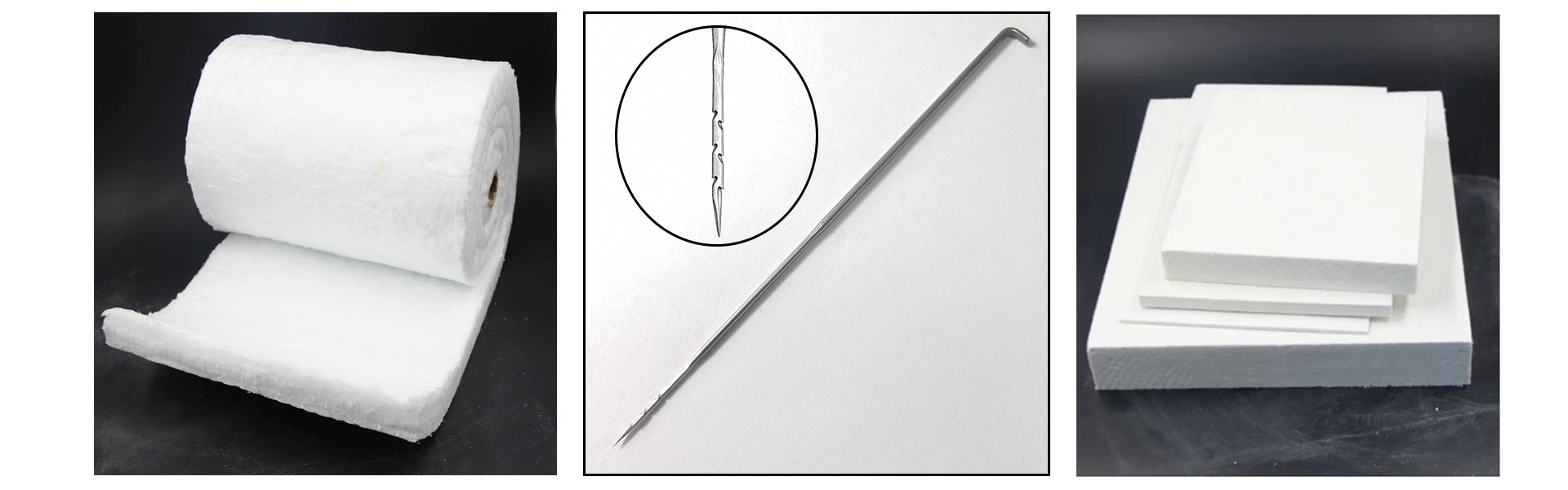

Ceramic fiber insulation blanket is a high-temperature resistant material widely used in petrochemical, ceramic, iron and steel industries and other fields. The finished products have a thickness of 75mm or above.The needling depth ranges from 8mm to 14mm. The needling density is between 15 and 40 needles per square centimeter.

The open-style-barb needles independently developed by our company are most suitable for this type of fiber. They have won high recognition from numerous domestic and overseas users in practical application. The world's three major brands — Morgan, Isolite and Unifrax — have been long-term users of our products. The smooth barb of DOER open-style-barb needles can minimize damage to the relatively brittle ceramic fibers, ensuring the optimal strength and insulation performance of finished.

Needle Recommendations:
No.	Needle Number	Needle Type	Gauge	Length	Remark	Cross Reference
1	15×17×25×3.5 C333 DK3288	Tirangular needle	25G	3.5"	First barb is open-style-barb	15X16X25X3 1/2 C333 G3412
2	15X17X25X3.5 C333 DK4206	Tirangular needle	25G	3.5"	First barb is open-style-barb
3	15×16×23×4 C333 DK3258	Tirangular needle	23G	4.0"	First barb is open-style-barb	15X16X23X4 C333 G3412
4	15×17×25×4 C333 DK3288	Tirangular needle	25G	4.0"	First barb is open-style-barb
5	15X16X32X4 R333 D1327	Tirangular needle	32G	4.0"	Standard triangular needle
6	15×16×23×4.5 C333 DK3230	Tirangular needle	23G	4.5"	First barb is open-style-barb	15X16X23X4 1/2 C333 G3412
7	15×17×25×4.5 C333 DK420	Tirangular needle	25G	4.5"	First barb is open-style-barb
8	15×17×25×4.5 C333 DK3286	Tirangular needle	25G	4.5"	First barb is open-style-barb	15X16X25X4 1/2 C333 G3412
9	15×17×25×4.5 C333 DK3280	Tirangular needle	25G	4.5"	First barb is open-style-barb
10	15×16×23×4.8 C333 DK3264	Tirangular needle	23G	4.8"	First barb is open-style-barb
11	15×16×23×5 C333 DK3264	Tirangular needle	23G	5.0"	First barb is open-style-barb
12	15×17×25×5 C333 DK3288	Tirangular needle	25G	5.0"	First barb is open-style-barb	15X16X25X5 C333 G3412
13	15X17X26X5 R333 D4105	Tirangular needle	26G	5.0"	Standard triangular needle
