Filter Media Felt

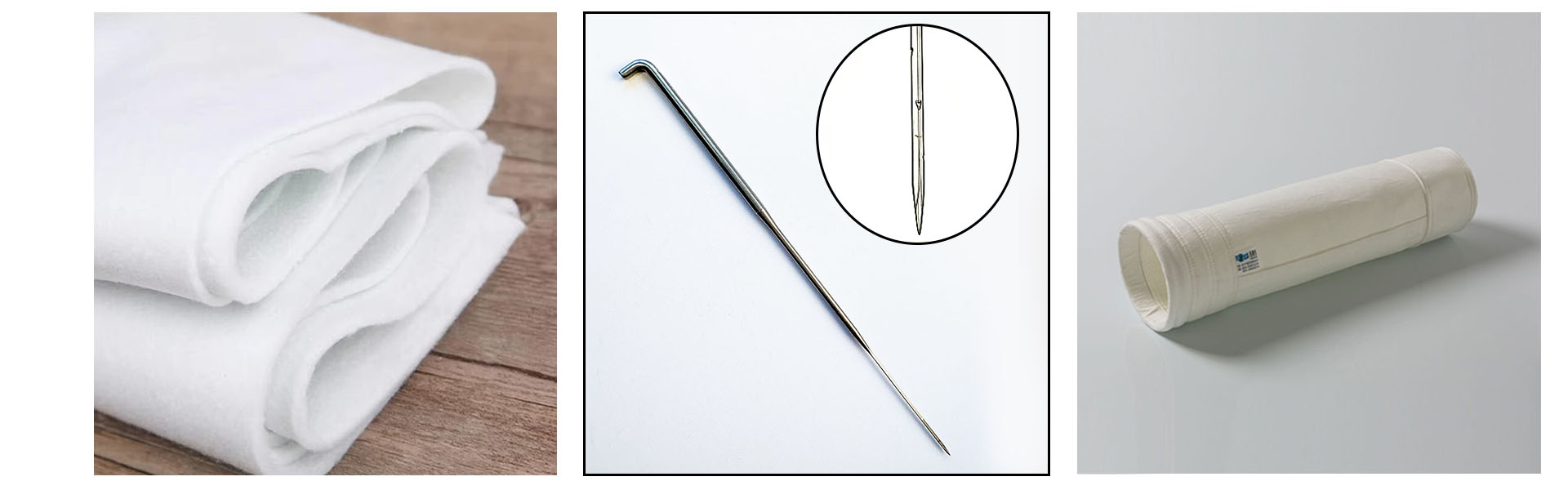

Filter materials are widely used to remove dust or other particulates from air, gases, or liquids. Compared to other commonly used textile filter media, such as woven fabrics, needle-punched filter materials offer superior performance. Both fiber fineness and product density affect the efficiency of the filter cloth. The specific choice of fibers and needling methods depends on the actual application of the filter medium.

Industrial bag-type needle-punched filter materials require a strong base scrim into which the fiber web is punched from top to bottom, as these filters must withstand high pressure and strong tension. Conversely, some non-industrial filter materials do not require a base scrim. High-temperature filter materials must use fibers that remain stable under elevated temperatures as raw materials, with special glass fibers and aramid fibers being among the most common. For needle-punched filter materials, the most critical factor is ensuring the strength of the finished product. The aforementioned structuring barb needles can effectively protect fibers from damage, thereby ensuring product strength.

Two other key considerations are the density and air permeability of the finished product. To achieve the required density and avoid over-needling that could impair product permeability, it is highly recommended to use DOER star needles.

Needle Recommendations:
No.	Needle Number	Needle Type	Gauge	Length	Remark
1	15X18X38X3.5 R333 D2182	Triangular needle	38G	3.5"	Pre-needling
2	15X16X36X3.5 M333 D52294	Conical needle	36G	3.5"	Pre-needling
3	15X18X36X3.5 R333 D1328	Triangular needle	36G	3.5"	Pre-needling
4	15X18X36X3.5 R333 D2112	Triangular needle	36G	3.5"	Pre-needling

1	15X18X40X3 C222 D3172	Triangular needle	40G	3"	Intermediate needling
2	15X18X40X3 M222 D3172	Triangular needle	40G	3"	Intermediate needling
3	15X18X40X3 R222 D3162	Triangular needle	40G	3"	Intermediate needling
4	15X18X38X3 R222 D2163	Triangular needle	38G	3"	Intermediate needling
5	15X18X38X3 M333 D2182	Triangular needle	38G	3"	Intermediate needling
6	15X18X40X3 R222 D3163	Triangular needle	40G	3"	Intermediate needling
7	15X18X40X3 R222 D4172	Triangular needle	40G	3"	Intermediate needling

1	15X18X42X3 R111 D3142	Triangular needle	42G	3"	Finish-needling
2	15X18X40X3 C222 D3151	Triangular needle	40G	3"	Finish-needling
