Papermaking Felt

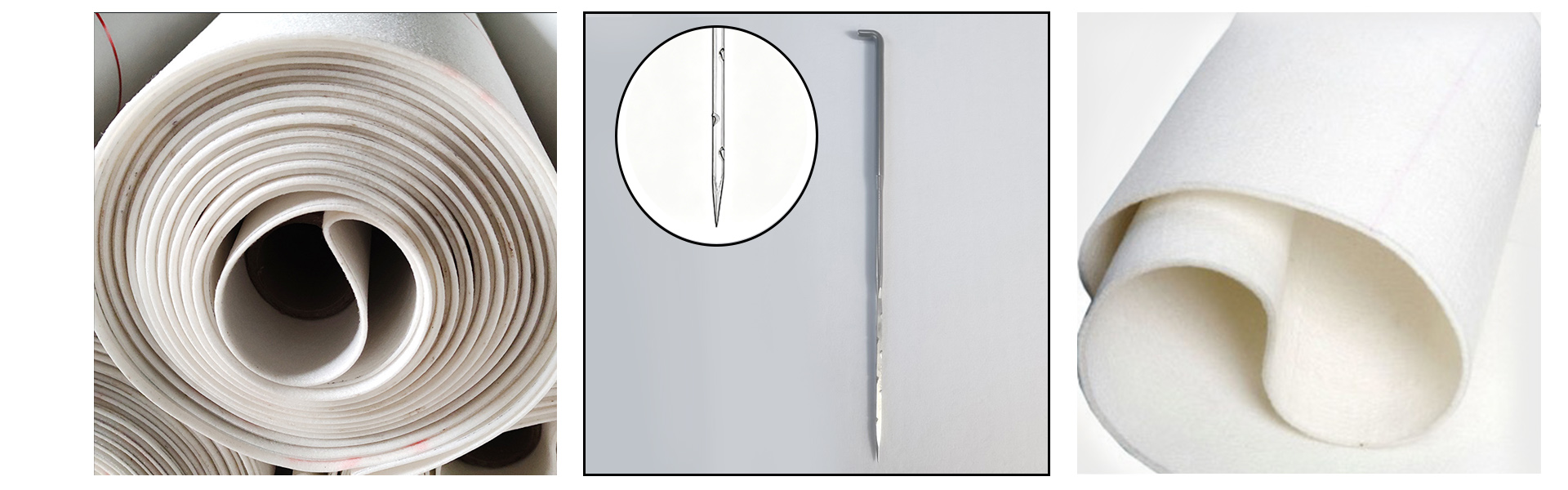

Papermaking felts are needle-punched nonwoven products used on paper machines. They feature an endless loop structure containing a special base mesh layer in the middle, with several layers of pre-needled or carded fiber webs consolidated together through needle punching. Their primary function on the paper machine is press dewatering, which requires the product to possess high strength, excellent high-temperature resistance, and superior water drainage performance.

Our company has successfully developed a special needle point that has delivered excellent results over time. This needle point can reduce or even completely eliminate needle damage to the base mesh, as well as prevent yarn displacement within the mesh. Additionally, our newly developed peach-shaped needle possesses all the aforementioned advantages. Its unique peach-shaped cross-section design effectively reduces needle breakage rates and significantly lowers penetration resistance. Customers are highly encouraged to choose this option.

DOER structuring needles can also maximize the strength, durability, filtration properties, and service life of papermaking felts. Selecting the correct needle minimizes base mesh damage while ensuring maximum fiber transport efficiency. Generally, the needling depth ranges from 10 to 12 mm, and the needling density typically ranges between 400 and 800 punches per square centimeter.

Needle Recommendations:
No.	Needle Number	Needle Type	Gauge	Length	Remark
1	15X18X32X3 F800 D92105BC	Triangular needle	32G	3.0"
2	14X18X32X3 F800 D92105BC	Triangular needle	32G	3.0"
3	15X18X32X3 F800 D92315BC	Triangular needle	32G	3.0"
4	15X18X32X3 F800 D94171BD	Triangular needle	32G	3.0"
5	15X18X32X3.15 F800 D92184BC	Triangular needle	32G	3.15"
6	15X18X32X3.15 F800 D92394BC	Triangular needle	32G	3.15"
7	14X18X32X3.15 F800 D92103BC	Triangular needle	32G	3.15"
8	14X18X32X3.15 F800 D92304BC	Triangular needle	32G	3.15"
9	15X18X32X3 F008 D62173CG	Teardrop needle	32G	3.0"
10	15X18X36X3 F008 D64173CG	Teardrop needle	36G	3.0"
