Geotextile

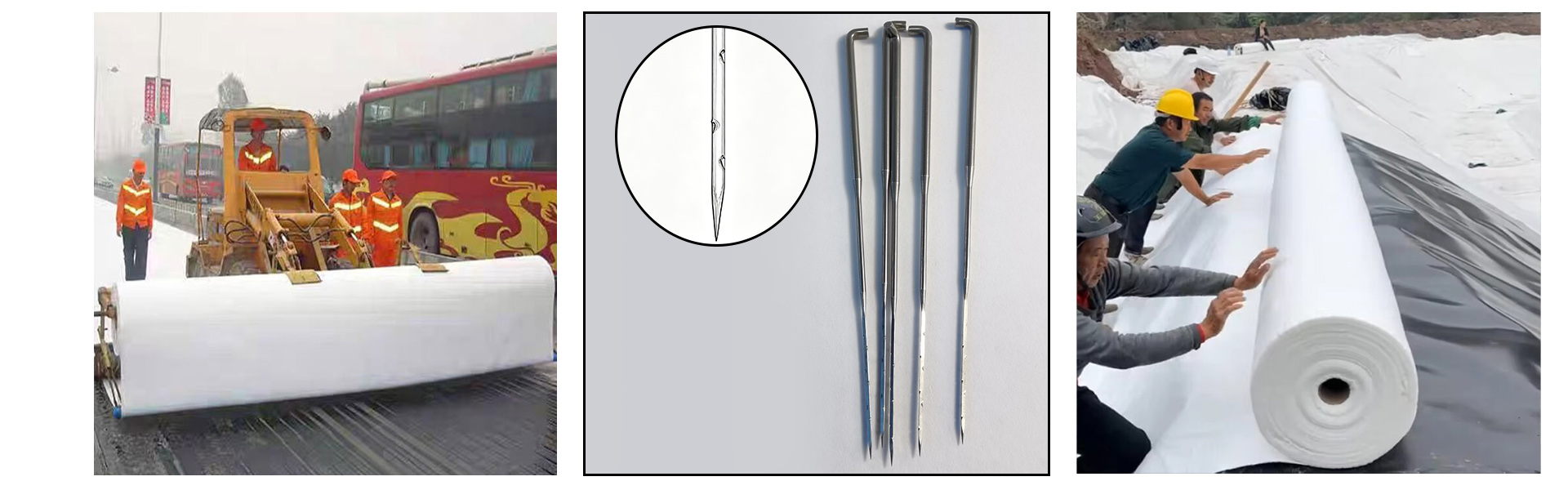

Geotextiles are widely used geotechnical materials in the construction of roads, reservoirs, tunnels, and dams. Their primary functions are separation, filtration, drainage, stabilization, and reinforcement. DOER star needles are best suited for producing high-strength geotextiles, with particularly notable results in staple fiber and spunbond geotextile production. The four-sided barbs of the star needle ensure a high entanglement rate per penetration while minimizing fiber damage.

Many types of fibers are used to produce staple fiber geotextiles, depending heavily on the specific application. Common choices include polyester, polypropylene, and nylon, with fiber fineness typically ranging from 4 to 10 denier, though some products utilize coarser fibers. The needling depth is generally 10 to 12 mm, and the needling density typically ranges from 100 to 400 punches per square centimeter. Spunbond geotextiles usually require high-speed needle punching machines running at 2,000 to 3,000 strokes per minute. Their needling density is relatively lower, with the main loom usually at 100 to 300 punches per square centimeter, and a recommended needling depth of 10 to 12 mm.

Currently, filament geotextiles are becoming increasingly widely used. Our company has introduced several needle models suitable for geotextiles, which have shown relatively good results based on several years of customer use. Customers in need are welcome to choose these filament geotextile needles.

Needle Recommendations:
No.	Needle Number	Needle Type	Gauge	Length	Remark
1	15X18X36X3.5 R333 D1196	Triangular needle	36G	3.5"	Pre-needling
2	15X18X36X3.5 R333 D2112	Triangular needle	36G	3.5"	Pre-needling
3	15X18X36X3. 5 R333 D2312	Triangular needle	36G	3.5"	Pre-needling
4	15X18X36X3.5 R333 D3312	Triangular needle	36G	3.5"	Pre-needling

1	15X17X38X3 C4X2 D44152	Cross star needle	38G	3"	Main needling
2	15X16X36X3 C4X2 D44163	Cross star needle	36G	3"	Main needling
3	15X18X40X3 R222 D2172	Triangular needle	40G	3"	Main needling
4	15X18X40X3 R222 D3163	Triangular needle	40G	3"	Main needling
5	15X18X38X3 M333 D2182	Triangular needle	38G	3"	Main needling
6	15X18X38X3 R222 D2163	Triangular needle	38G	3"	Main needling

1	15X18X36X3 R222 D4141	Triangular needle	36G	3"	Main needling for filament
2	15X18X36X3 R222 D5141	Triangular needle	36G	3"	Main needling for filament
3	15X18X36X3 R222 D6141	Triangular needle	36G	3"	Main needling for filament

1	15X18X36X3.5 F006 D62173BD	Teardrop needle	36G	3.5"	Composite needling
2	15X18X32X3 F008 D62173CG	Teardrop needle	32G	3"	Composite needling
3	15X18X32X3.15 F800 D92184BC	Triangular needle	32G	3.15"	Composite needling
4	15X17X40X3 M222 D53152	Conical needle	40G	3"	Composite needling
5	15X16X36X3 M222 D52182	Conical needle	36G	3"	Composite needling
